Buy Once, Drill ForeveR
Cable Tool Technology
Easy To
Operate
The Rhino Rig is built for ease of use and safety, making it easy to operate in remote areas, developing countries, or by a small team on a farm.
Cost Effective
Instead of paying thousands for each well, invest in a Rhino Rig once and drill forever. Less than a 1/10th the price of a standard well drilling Machine, Rhino Rig cost $80,000 $50,000USD
150m
Depth
Parts
Available
Worldwide
Rugged
Easy To
Transport
Rugged
Fuel
Efficient
compact
Works
Rain or
Shine
1 Day
Training
150m
Depth
150m
Depth

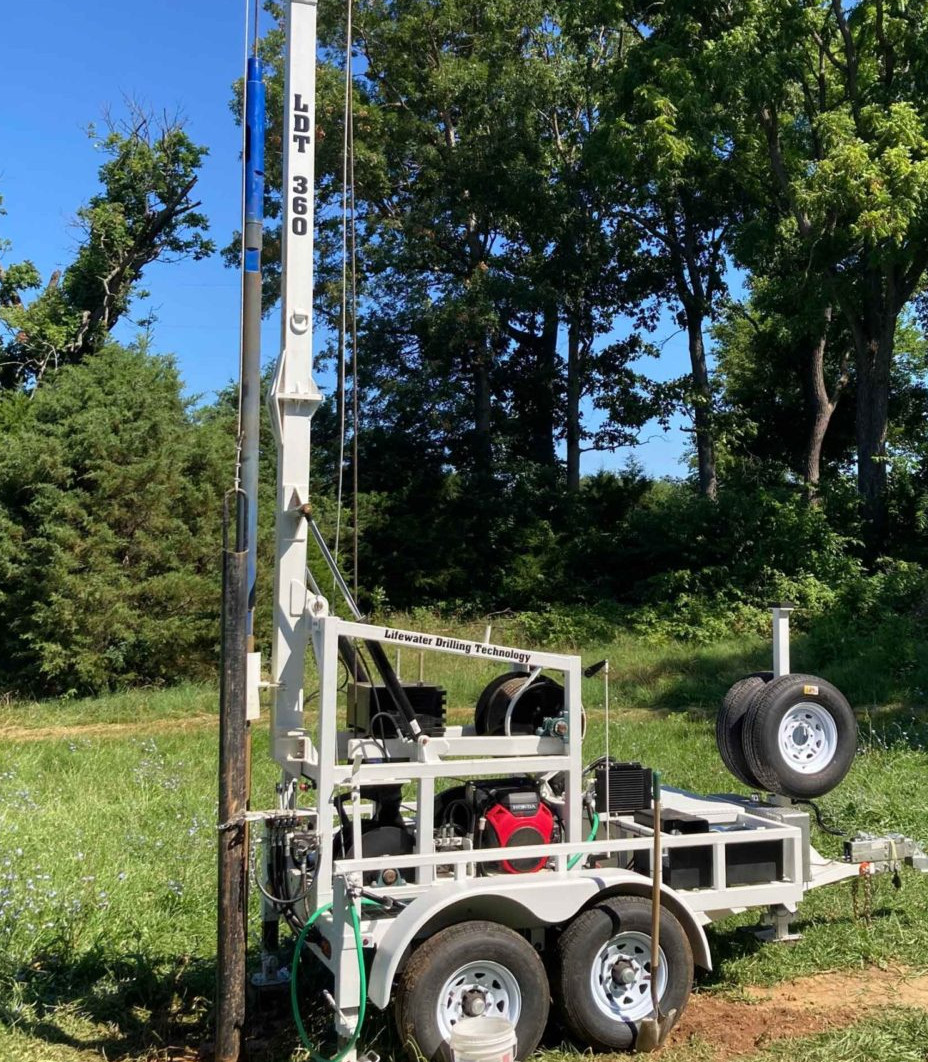

Specifications
-
$80,000 For Ready To Go Rig
-
Diameter of 4", 6", and 8"
-
Hydraulic Oil Cooler With Electric Fan
-
Three Square Jacks Rated At 25,000 Lb Each
-
Powder Coat Finish For Long-lasting Durability
-
Four Spool Hydraulic Control: Mast, Sandline, Mainline, Walking Beam
-
22 Inch Stroke
-
Maximum Hammer Cycle: 58 Strokes Per Minute
-
Adjustable Auto Feed For Main Line
-
40 Gallon Water Storage With Pressure Pump
-
150 Meter/450' Depth
-
Tow Behind Rig
-
Choice Of Carbide Button Bit From 3.5" - 10” Diameter
-
Weight Without Stem And Tool: 6,500 Lb
-
Trailer Weight Capacity: 15,000 Lb
-
Dimensions: 2.82m Long X 2.31m Wide X 2.13 High
-
(111” L X 91” W X 84”H)
-
-
Trailer Brakes: 4 Wheel Hydraulic
-
Mast Height: 29 Ft Usable
-
Sandline Cable: 500 Ft ⅜” Diameter
-
Mainline Cable: 500 Feet ⅝” Diameter
-
Engine: 21 Horsepower Gasoline Honda Electric
-
Start 18 Amp Charger
-
-
Welder (optional): 150 Amp Arc Welder
-
Hydraulic Oil Tank: 30 Gallon Capacity
Proudly Manufactured in America | Sate of Virginia
Proudly Manufactured in America | State of Virginia
Rhino Rig on Video
Performance
The Rhino Rig is a hydraulically powered cable-tool drilling machine designed for water well drilling. A tall mast raises the drill line and tools into position, while a hydraulic system powers a walking beam that repeatedly lifts and drops a heavy drill stem and bit. This up-and-down pounding action breaks through soil and rock to deepen the borehole. As drilling progresses, loosened material is removed with a bailer so the well can continue to be drilled to greater depths.
-
One man operation, easy training, easier to use, cheaper to operate
-
Drills unconsolidated formations at rate of 1-3 meters per hour
-
Drills through rock at rate of .3-1 meter per hour
-
Ships and tows easily, accessible to more locations
-
Two rigs fit in standard shipping container
-
75 liter fuel tank - approximately 12 hours of continuous operation
-
No air compressor required
-
No mud pump required
-
150 liter water storage with pressure pump
-
Accommodates bit sizes of 25cm or even larger
-
Straight Drilling in Rock
